This is a Mitutoyo 500-196-30 ABSOLUTE Digimatic digital caliper with a 0-8″ (0-200mm) measuring range, made in Japan. Its ABSOLUTE encoder keeps track of the origin point, so there is no need to reset zero every time you turn it on, and it eliminates overspeed errors. Hardened stainless steel jaws and beam provide accurate outside, inside, depth, and step measurements, while the large, clear LCD is easy to read. A trusted precision tool for machining, inspection, and quality control.

Design & Features

1. Genuine Mitutoyo 500-196-30 (Made in Japan)
2. Range: 0-8″ / 0-200mm
3. Resolution: 0.0005″ / 0.01mm
4. Accuracy: ±0.001″ / ±0.02mm
5. ABSOLUTE encoder, no need to re-zero at power-up
6. Zero/ABS key for incremental comparison measurements
7. Inch/metric conversion
8. Large LCD display, thumb roller for smooth slide movement
9. Hardened stainless steel construction
10. SR44 battery, approx. 3.5 years battery life
11. SPC data output port

Condition

Brand new.

What’s Included

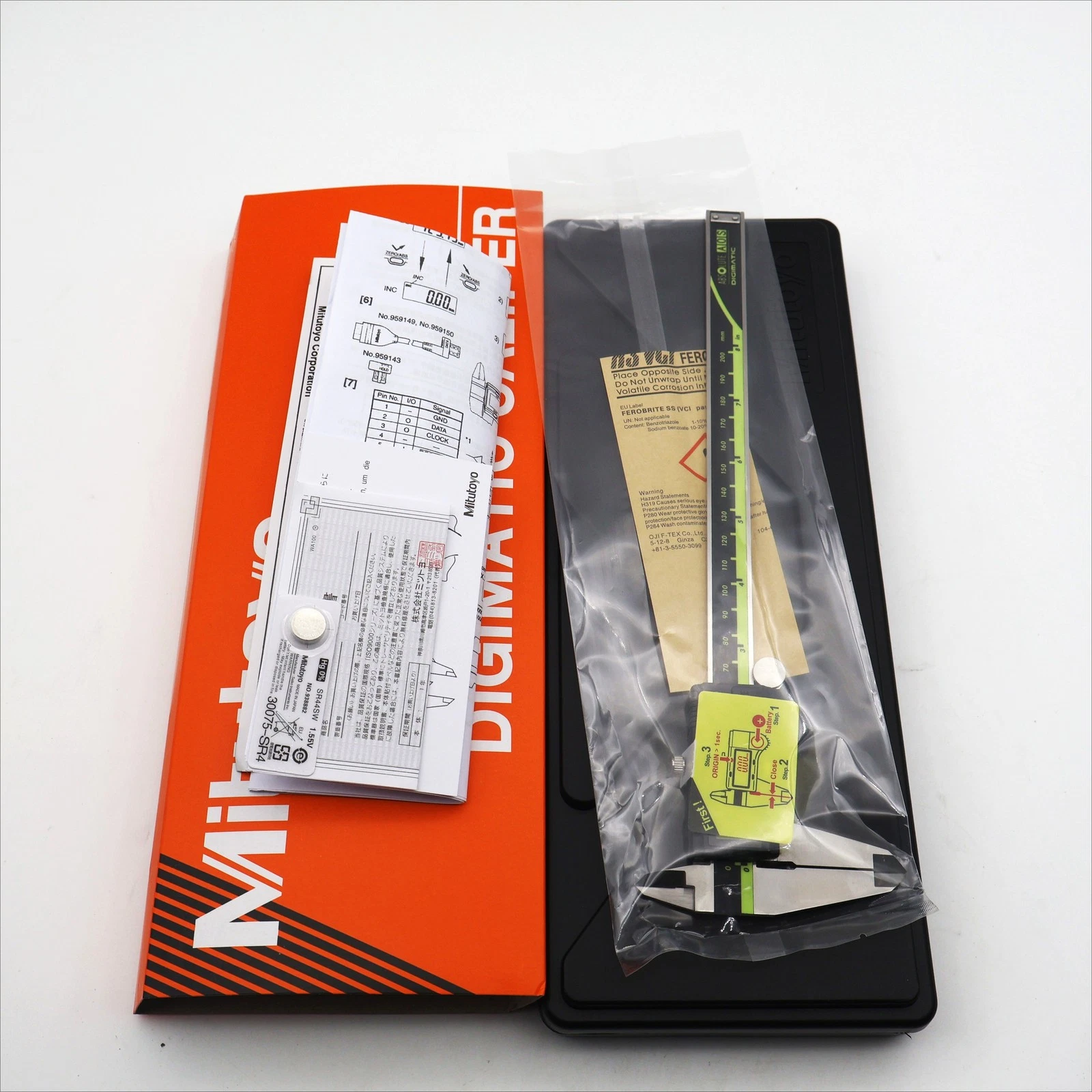

One Mitutoyo 500-196-30 Digimatic Caliper with SR44 battery, hard plastic case, and instruction manual.

Occasion

Great for machinists, inspectors, engineers, and hobbyists who need accurate measurements of medium-sized parts.

Usage Instructions

Slide the jaws closed and set zero if needed. Use the inch/mm key to switch units. Replace the SR44 battery when the low-voltage indicator appears. Clean the scale and jaws after use.
