Description

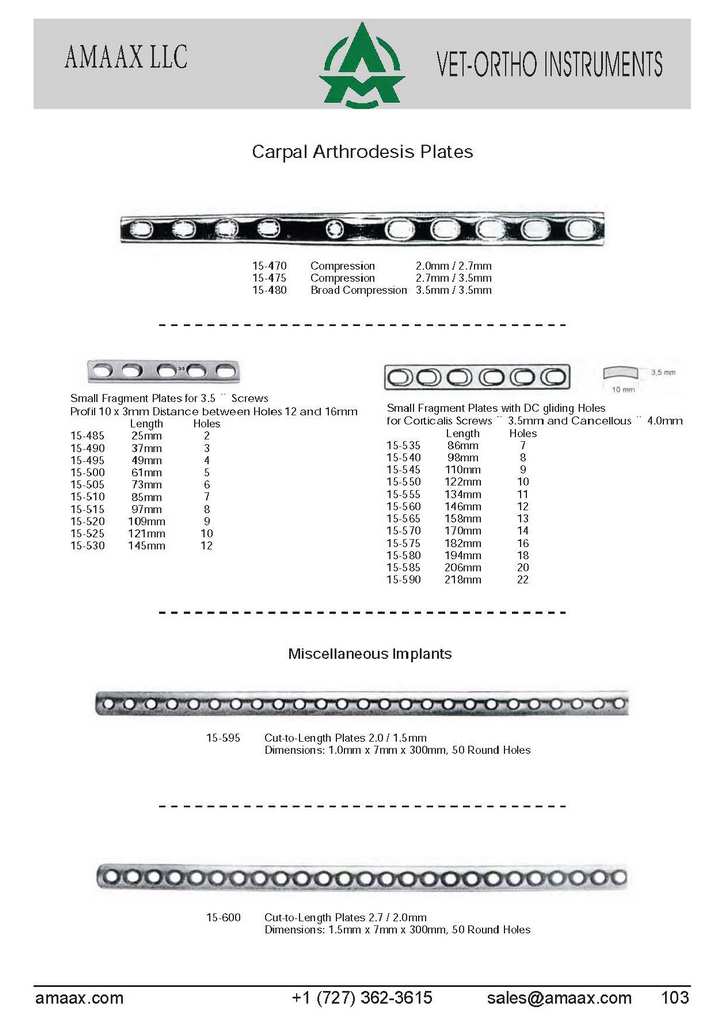

Carpal Arthrodesis Plates 15-470 Compression 2.0mm / 2.7mm 15-475 Compression 2.7mm / 3.5mm 15-480 Broad Compression 3.5mm / 3.5mm Small Fragment Plates for 3.5 ? Screws Small Fragment Plates with DC gliding Holes Profil 10 x 3mm Distance between Holes 12 and 16mm for Corticalis Screws ? 3.5mm and Cancellous ? 4.0mm Length Holes Length Holes 15-485 25mm 2 15-535 86mm 7 15-490 37mm 3 15-540 98mm 8 15-495 49mm 4 15-545 110mm 9 15-500 61mm 5 15-550 122mm 10 15-505 73mm 6 15-555 134mm 11 15-510 85mm 7 15-560 146mm 12 15-515 97mm 8 15-565 158mm 13 15-520 109mm 9 15-570 170mm 14 15-525 121mm 10 15-575 182mm 16 15-530 145mm 12 15-580 194mm 18 15-585 206mm 20 15-590 218mm 22 Miscellaneous Implants 15-595 Cut-to-Length Plates 2.0 / 1.5mm Dimensions: 1.0mm x 7mm x 300mm, 50 Round Holes 15-600 Cut-to-Length Plates 2.7 / 2.0mm Dimensions: 1.5mm x 7mm x 300mm, 50 Round Holes
